GEDCOM Relationship Report

GEDCOM Relationship Report is a Python-based tool that shows the relationship and relationship path from a selected proband to people in the proband’s biological family line.

Any person in the GEDCOM file can be selected as the proband. In the English Gramps interface, the proband corresponds to the Home Person .

If more than one person has the same name, the script displays the matching people and lets you select the correct person by ID.

The report is created locally as HTML , XLSX and JSON files.

• Gramps 5.2 or later.
• Python 3.x.
• The Python packages pandas and openpyxl .
• The GEDCOM filter used by this project must be created in Gramps before exporting the GEDCOM file.

Open the GEDCOM filter guide →

The filter excludes a child recorded with a non-birth relationship and the related family branch unless a biological connection also exists. Without this filtering, family relationship names in the report can be incorrect.

Tested platforms

• Gramps 6.0.8 on Windows 11.
• Gramps 6.0.8 on Zorin OS 18.1 Core.

macOS has not been tested.

Source & Downloads

Download and extract the seven files to a working folder.

• LICENSE.txt
• Maren_Iversen.html
• Maren_Iversen.xlsx
• README.md
• relationship.py
• relationship_names.xlsx
• RELEASE_NOTES.txt

You can first open the two Maren Iversen example reports to see the expected result before using your own family tree.

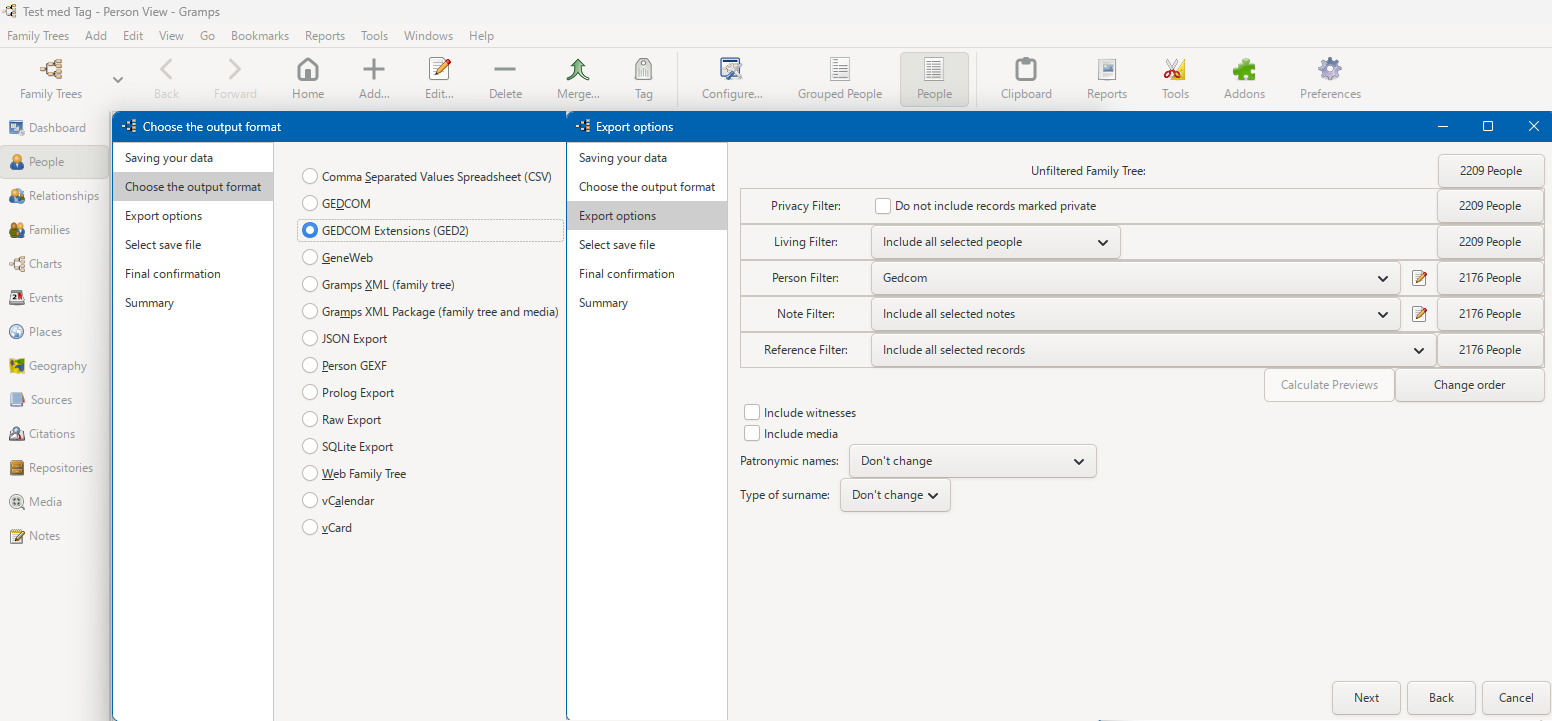

1. Open Gramps and your family tree.
2. Choose GEDCOM Extensions (GED2) as the export format.
3. Under Person Filter , select Gedcom .
4. Select Calculate Preview . The number of included people should now be significantly lower than the unfiltered family tree.
5. Save the .ged2 file in the same working folder as relationship.py .
6. Close the family tree and Gramps.

The GEDCOM file is only read by the Python script. It is not modified.

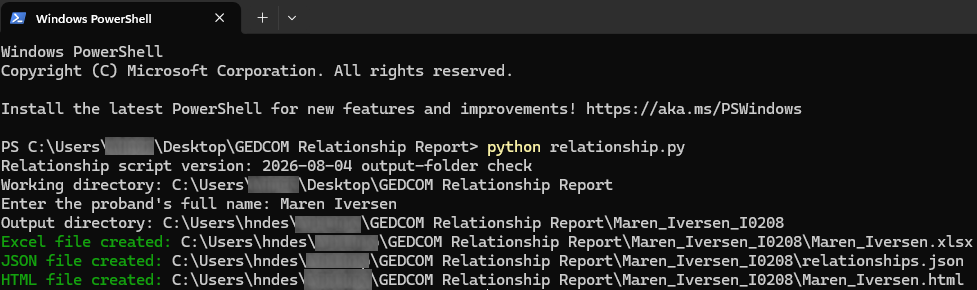

Open the working folder in a terminal and run:

python relationship.py

Enter the full and correct name of the person who should be used as the proband. If several people have the same name, choose the correct person from the displayed IDs.

The script creates a subfolder named relationship-report-output . The HTML, XLSX and JSON files inside it are named after the selected proband.

HTML

The HTML report contains Name , Relationship , Simplified path , Relationship path and Generation . It can be opened locally in a browser, with search available for name, relationship and generation.

XLSX

The XLSX report contains the same main report columns and can be searched and sorted with the normal functions in a spreadsheet application.

JSON

The JSON file contains ID , Name , Relationship , SimplifiedPath , RelationshipPath , Generation , Occupation , Roles and Path . Roles and Path are reserved for later use.

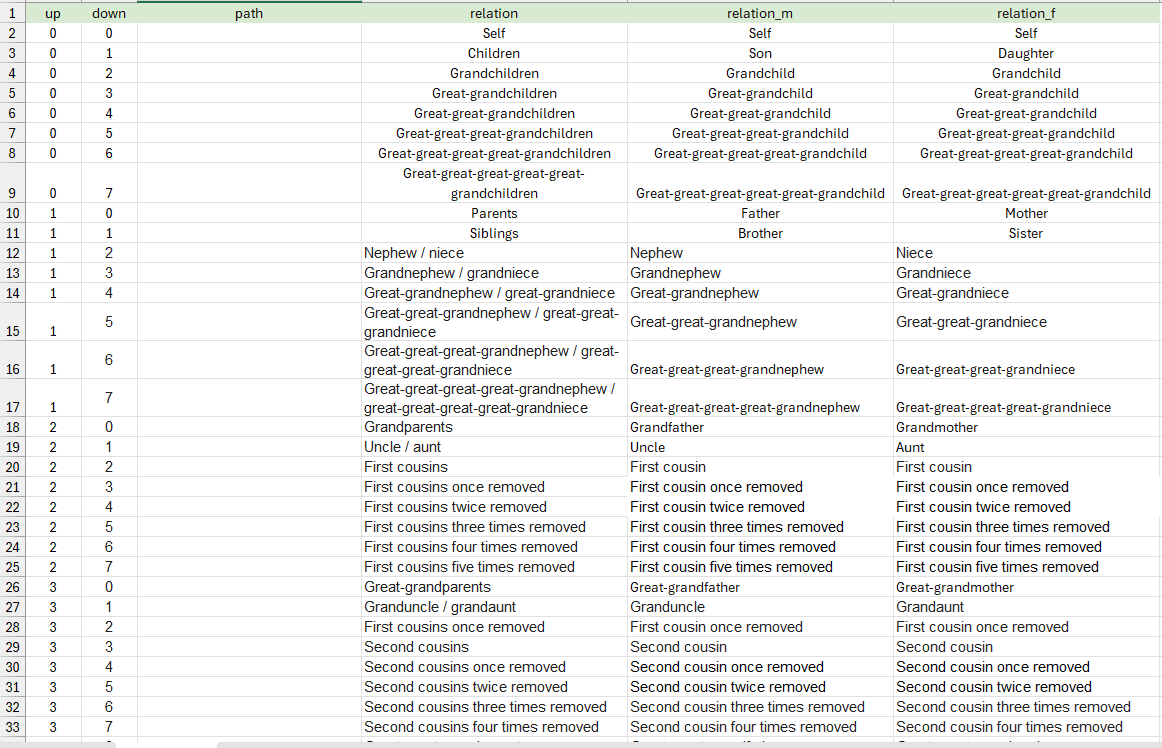

relationship_names.xlsx contains the relationship names used by the script together with the corresponding relationship paths. It includes relationships such as children, parents, siblings, nieces and nephews, grandparents, uncles and aunts, and cousins.

• Only one .ged2 file may be present in the working folder when the script is run.
• Additional GEDCOM files can temporarily be renamed, for example from .ged2 to .ged2.bak .
• A proband cannot be selected by ID alone. Enter the full name first.
• Running the report again for a proband with the same name overwrites the previous files for that name.
• A GEDCOM file containing about 2,100 people typically takes approximately 1–2 seconds to process, depending on the computer.

For questions and troubleshooting, see Support & feedback .
